2025 Merida eOne-Sixty 400 - Red/Clay

Season:2025

Brand:Merida

Code:P-Q840

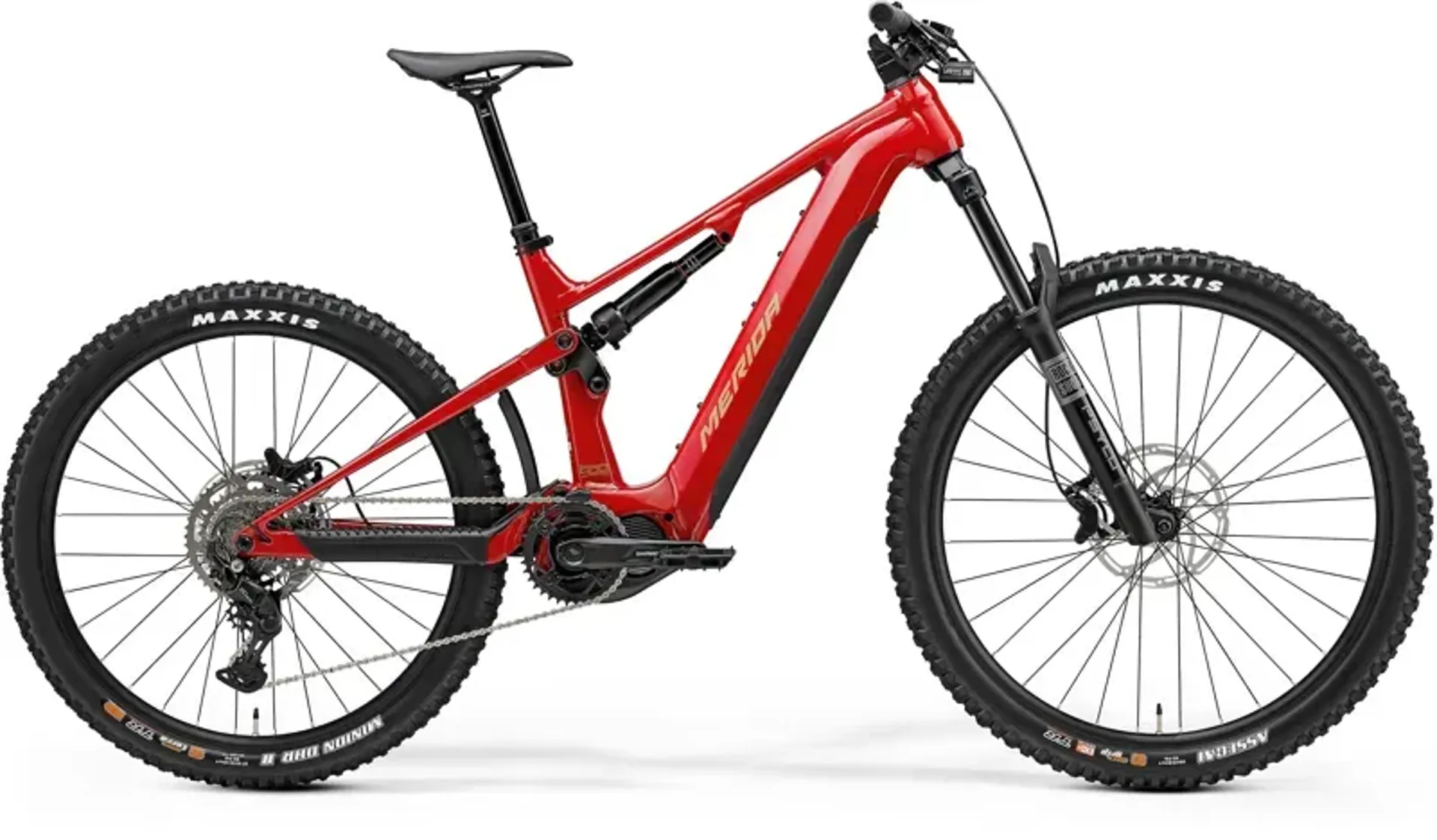

2025 Merida eOne-Sixty 400 - Red/Clay

The new eONE-SIXTY 400 features their latest fourth-generation aluminium frame, offering impressive performance at an incredible price. The user-removable 630 Wh battery gives you plenty of range and the powerful Shimano EP801 drive unit will help you conquer any climb. Thanks to the latest e-enduro geometry and a mix of bump-taming 29" front and agile 27.5" rear wheel, it's a fun and capable enduro machine, while proven suspension, Shimano brakes and drivetrain and RockShox suspension will keep you in control.

With the latest eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while proven FAST kinematic suspension will take care of anything the trail throws at it.

This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to their flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature their ground-breaking 30-230 mm travel-adjustable dropper post.

Features:

  • Fourth generation LITE aluminium frame with 174 mm rear wheel travel.
  • RockShox Psylo Silver fork with 170 mm travel and Super Deluxe rear shock.
  • High quality Shimano CUES 9-speed drivetrain.
  • User-removable Shimano 630 Wh battery with powerful Shimano EP801 drive unit.
  • Mixed wheel size as standard with option to full 29".
  • Reach-based AGILOMETER sizing system with long-travel dropper posts on all sizes.
Technical Information
  • Frame
    Lite IV - Hydroformed 6061 Double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29 x 2.6.
  • Rear Shock
    Rock Shock Deluxe.
  • Fork
    Rock Shock Psylo Silver R; 160mm travel; Tapered; 44mm fork offset; 29x2.6 max WHS.
  • Headset
    Acros ICR Merida external neck with Blocklock.
  • Stem
    Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; Supernova mount; 40 mm all sizes.
  • Handlebar
    Merida Expert eTR; 780mm wide; XS,S 20mm rise; M,L,XL 30mm rise.
  • Grip
    Merida Expert EC.
  • Brake Type
    Hydraulic disc.
  • Brake Lever
    Tektro Gemini M535.
  • Brake Calipers
    Front: Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor. Rear: Tektro Gemini M535 4 piston hydraulic disc brake caliper with Tektro TR203-45 203mm rotor.
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead, folding; TR EXO+ 3C MaxxGrip. Rear: Maxxis Minion DHR II; 27.5 x 2.4; Kevlar bead, folding; 3C DD TR MaxxTerra.
  • Wheels
    Rims: Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5. Spokes: Black stainless. Front Hub: Shimano TC500-B; 110x115mm; 32 spoke; Centerlock. Rear Hub: Shimano TC500; 148x12mm; 32 spoke; Centerlock with Merida Expert TR; including removable lever, 6/4mm allen key.
  • Speeds
    9 Speed.
  • Rear Derailleur
    Shimano Cues U4000; GS.
  • Shift Levers
    Shimano SL-MT500-L dropper lever with Shimano Cues U4000-9 shifter.
  • Chain
    Shimano LG500.
  • Cassette
    Shimano LG400; 11-46 teeth; 9 Speed.
  • Chainset
    FSA 1x Steel chainring; 36 teeth with Shimano FC-EM600 crank; 165mm for all sizes; with Merida chain guide.
  • Bottom Bracket
    Part of Shimano Steps motor.
  • Pedals
    VP VPE-533.
  • Saddle
    Merida Comp SL; 28% recycled material; V-mount; including Merida minitool.
  • Seat Post
    Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm seat post travel - S: 150mm seat post travel - M/L/XL: 200mm seat post travel - XL: 230mm seat post travel.
  • Motor
    Shimano EN806; 630Wh, Shimano EP801; 85Nm.
  • Battery Capacity
    630Wh.
  • eBike Display
    Shimano SC-EN500.
