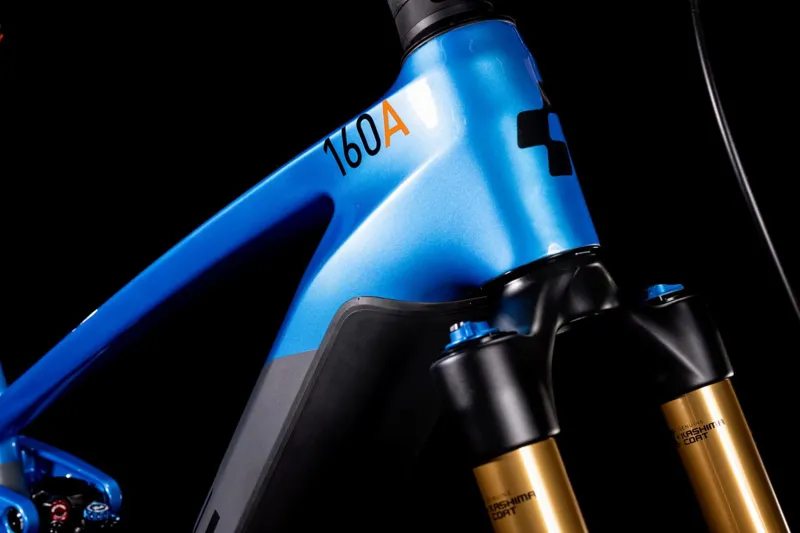

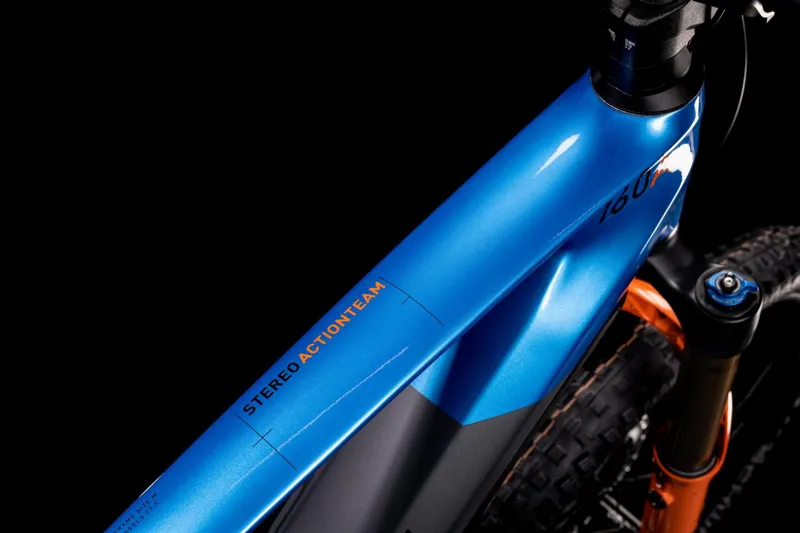

Frame
C:62 Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

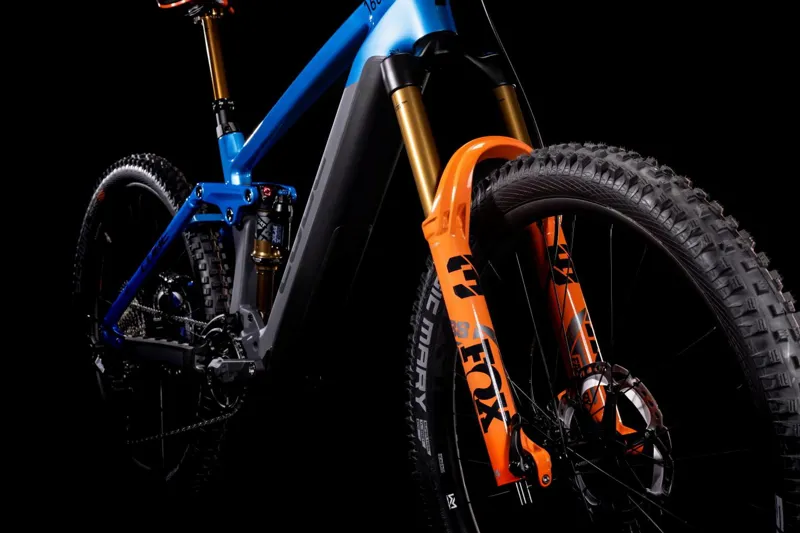

Fork
Fox 38 Float Factory FIT4, 3-Position w/Low Speed Compression Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm, Kashima Coated

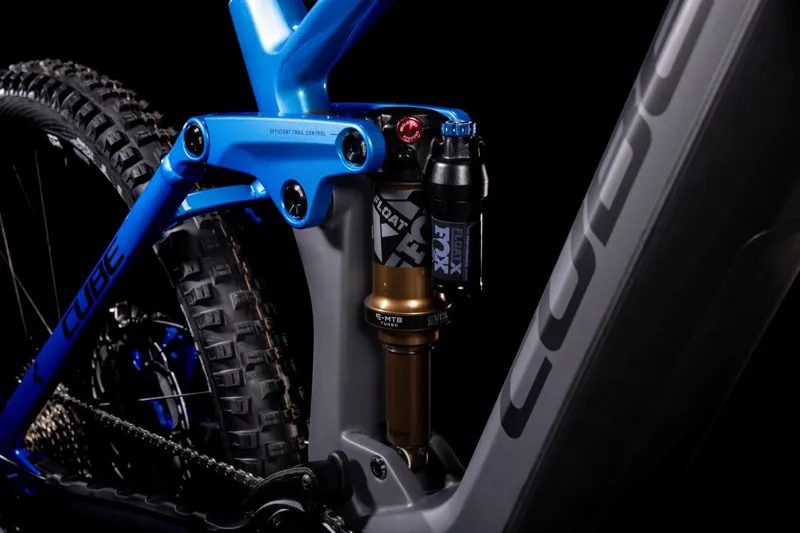

Shock
Fox Float X Factory, 205x65mm, Trunnion Mount, Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Shock hardware
Top: 54mm Trunnion Mount, Bottom: 22.2x8mm
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Advanced 318.25, Carbon, 780mm
Grips
Natural Fit MTB Stiffler Lock On, Soft Compound
Rear derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Chain guide
Reverse Flip-Guide E-Kettenführung, Direct Mount, GEN4
Shifters
Shimano XT SL-M8100-IR, Direct Attach
Brake system
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Crankset
e*thirteen Plus Crank, 165mm, 36T
Crankset chainring sizes
36T
Cassette
Shimano XT CS-M8100, 10-51T
Number of gears
12
Chain
Shimano CN-M8100
Wheelset (system wheels)
Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tire
Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4
Rear tire
Schwalbe Big Betty, Addix Soft, Super Gravity, Tubeless Easy, 2.4

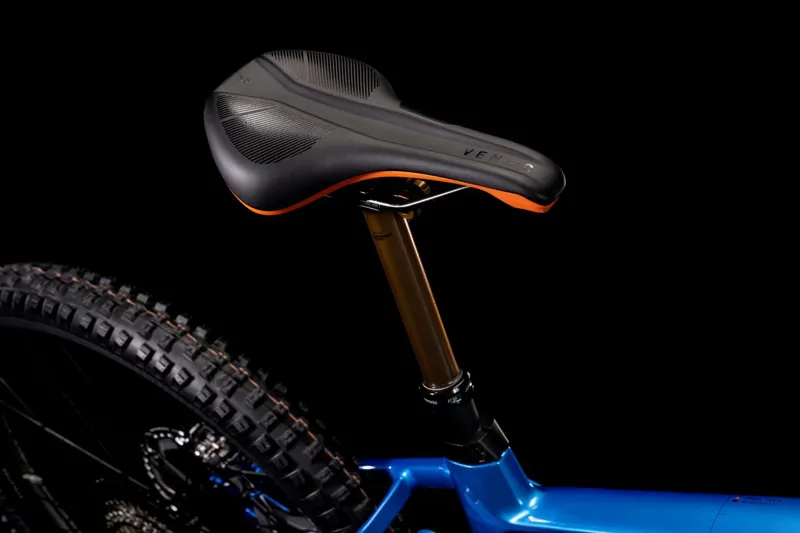

Saddle
Natural Fit Venec
Seat post
Fox Transfer Factory 31.6mm, Kashima Coated (M,L: 150mm, XL: 175mm)
Seat post clamp
CUBE Screwlock Semi Integrated, 34.9mm
Engine
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube
Charger
Bosch 4A
Display
Bosch Kiox 300
