2025 Merida One-Sixty FR 800 Black/Grey/Green

Season:2025

Brand:Merida

Code:P-Q065

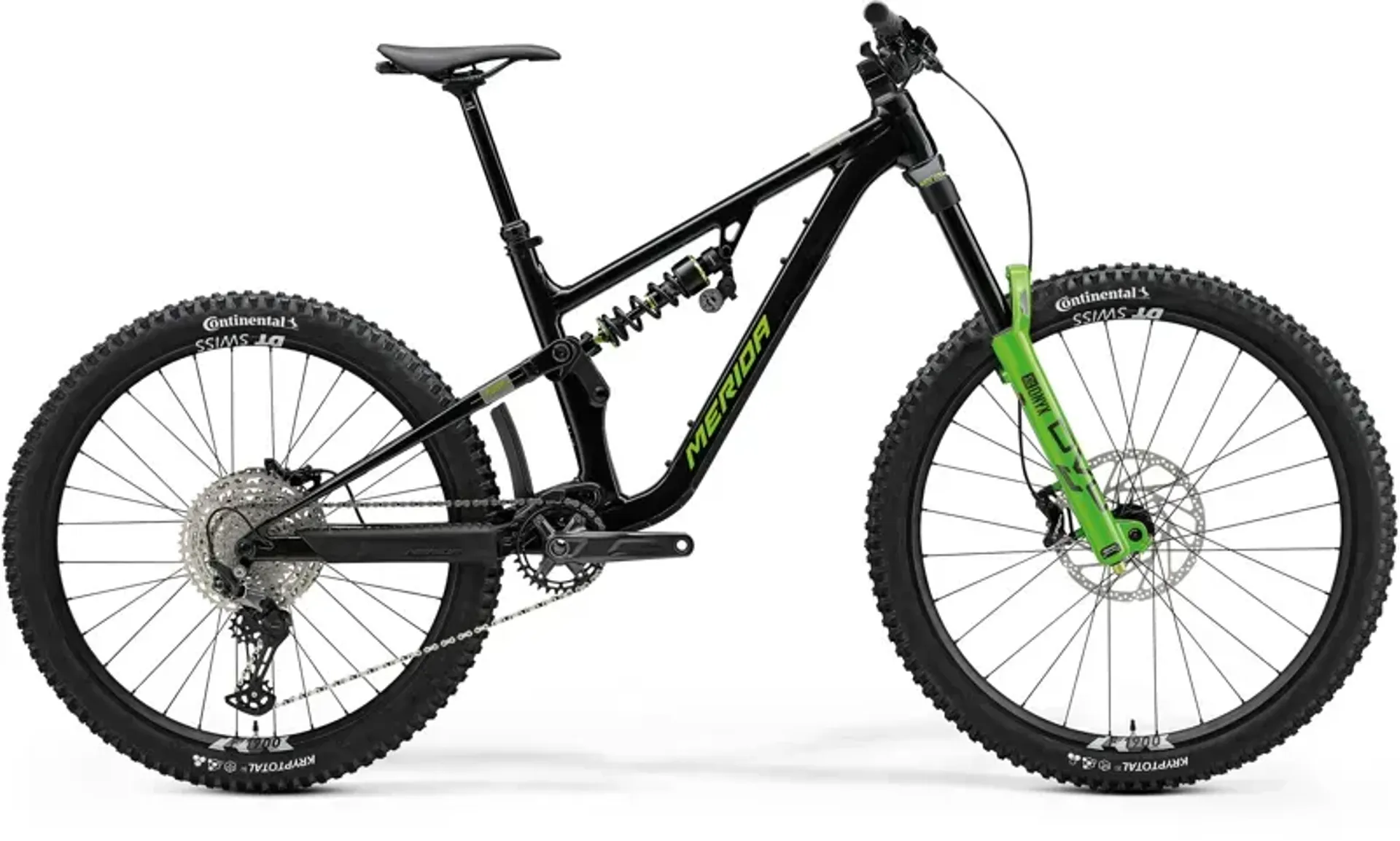

2025 Merida One-Sixty FR 800 Black/Grey/Green

The ONE-SIXTY FR 800 takes their award-winning aluminium enduro frame and pumps up the attitude to make it ideal for hard riders and bike park heavy hitters. Mixed wheels for fun handling, plus there's a tough 180 mm travel DVO Onyx fork with 38 mm legs paired with a plush DVO Jade coil shock at the rear, all controlled by their FAST kinematic suspension so you can consistently hit lines, run after run.

The ONE-SIXTY FR builds on the solid platform of their award-winning ONE-SIXTY, but cranks the volume up. It's built tough so that you can hit the bike park all day long, or just rip the toughest tracks and trails time after time, safe in the knowledge that the bike won't let you down. To boost the capability, they've added in longer travel forks pushing out 180 mm travel paired with coil shocks delivering 171 mm of rear wheel travel, mounted on their tough aluminium chassis.

All bikes run a mixed 29" front and 27.5" rear wheel size for maximum manoeuvrability, whether you're ripping turns or sending it hard. However, you can switch to a full 29er setup without impacting the geometry, thanks to their flip-chip system. Their AGILOMETER sizing allows riders to run a longer or shorter reach frame independently of their height. At the same time, the suspension becomes more progressive as you size up, and all bikes are fitted with long-travel dropper posts.

Features:

  • Full aluminium frame with FAST kinematic suspension and progressive geometry.
  • Mixed 29/27.5" wheels with tough casing tyres.
  • DVO Onyx 38 180 mm fork and DVO Jade X coil rear shock.
  • Tough DT Swiss F1900 wheelset paired with Continental Kryptotal tyres with Enduro front casing and Downhill rear.
  • Adjustable travel 230-40 mm dropper post.
  • Powerful TRP 4-piston hydraulic disc brakes with 220 mm front rotor.
Technical Information
  • Frame
    Lite III - Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axle standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. Max tyre size - 2.5
  • Rear Shock
    DVO Jade X D2; coil with spring rates Xshort & Short: 300, Mid: 350, Long: 400, Xlong: 450
  • Fork
    DVO Onyx 38 D2; Air; 180mm travel; tapered; 44mm Offset; 29
  • Headset
    Acros ICR Merida external neck; Upper and lower IPS sealing
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Length - 40mm (all sizes)
  • Handlebar
    Merida Expert TR II; aluminium; 780mm wide; XS/S 18mm rise; M/L/XL 30mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    TRP Trail Evo HD-M843
  • Brake Calipers
    Front: TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 220mm rotor Rear: TRP Trail Evo HD-M843; 4 piston hydraulic disc brake caliper with TRP RS01E; 203mm rotor
  • Tyres
    Front: Continental Kryptotal-F; 29 x 2.4; Kevlar bead; TR; Enduro casing; Soft Compound Rear: Continental Kryptotal-R; 27.5 x 2.4; Kevlar bead; TR; Downhill Casing; Soft Compound
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Part of wheelset - DT Swiss F1900; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29; rear 27.5 Spokes: Double Butted Black stainless Front Hub: Part of wheelset - DT Swiss F1900; 110 x 15mm Rear Hub: Part of wheelset - DT Swiss F1900; 148 x 12mm
  • Speeds
    12
  • Rear Derailleur
    Shimano Deore M6100; SGS
  • Shift Levers
    Shimano Deore M6100
  • Chain
    KMC X12
  • Cassette
    Shimano Deore M6100; 10-51 teeth; 12 speed
  • Chainset
    Shimano Deore MT512; 32 tooth chainset with Merida Expert TR ISCG05; Crank length - 170mm (all sizes)
  • Bottom Bracket
    Shimano BB-MT-501; 24mm
  • Saddle
    Merida Comp SL; V-mount - made with 25% recycled material
  • Seat Post
    Merida Team TR II; 34.9mm diameter; 0mm layback; all sizes 30-230 mm seat post travel
